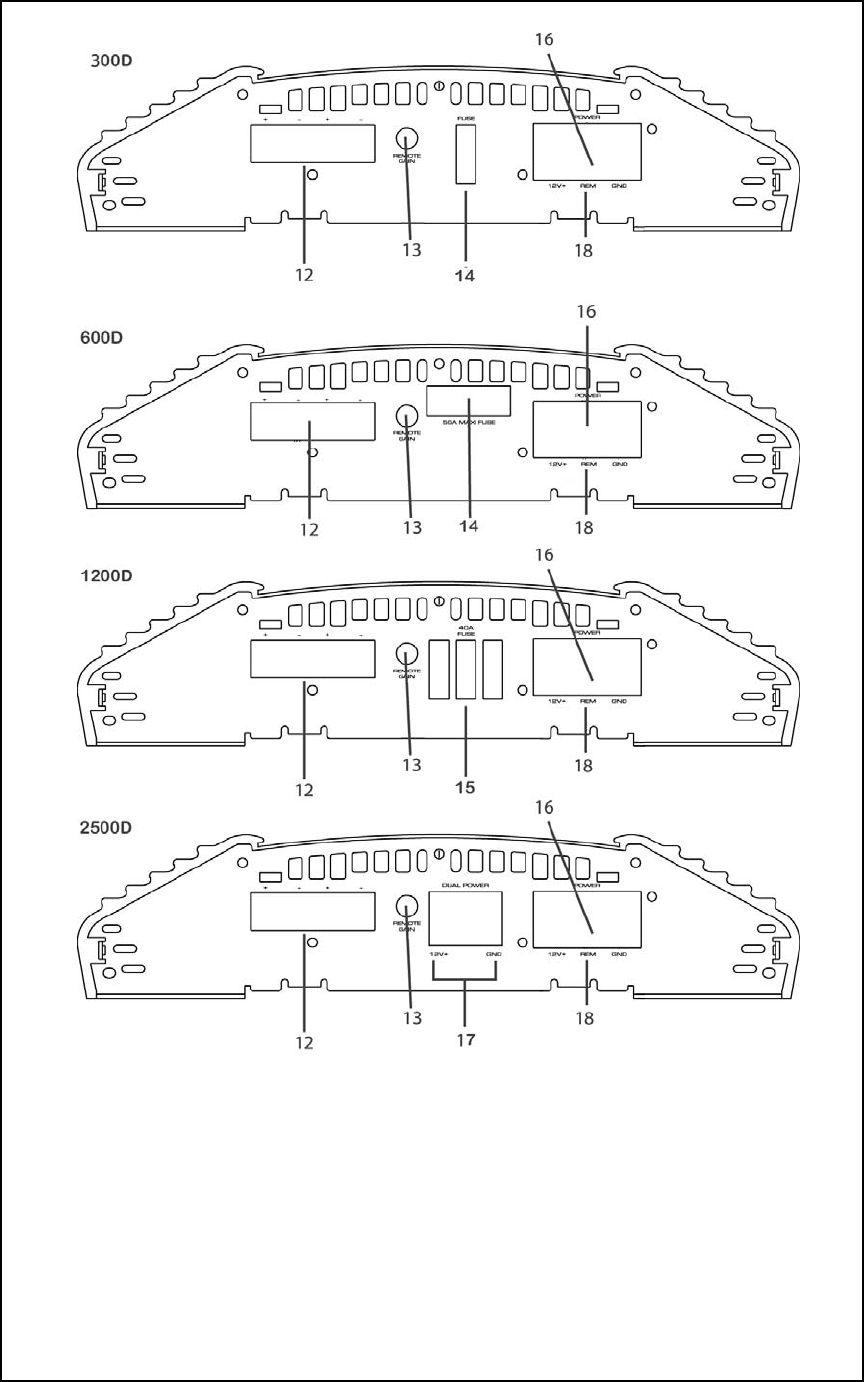

12. Speaker Connections - accepts up to 12-gauge speaker wire.

13. Remote Gain Jack - connects optional RGC-1 (remote gain control).

14. 1 ATC Fuse (300D) - protects the amplifier from over current situations.

14. 1 MAXI Fuse (600D) - protects the amplifier from over current situations.

15 3 ATC Fuses (1200D) - protects the amplifier from over current situations.

16. Power Connections - accepts up to 4 AWG power and ground cables.

17. Additional Power Connectors (2500D) - accepts secondary power and ground

cables.

18. REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
